Main industries and applications：

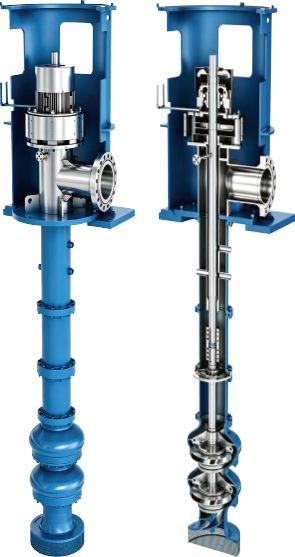

The FV1C-H is a vertical mixed flow pump with high capacity and medium to high head. Its design includes hydraulics from proven ranges. This pump has been engineered to balance high efficiency, low submergence and Net Positive Suction Head Required (NPSHr) considerations.
Specifications：
Material options ISO 13709 (API 610) material codes: S-5, S-6, S-8, A-8, D-1, D-2
| Technical Data： | ||
| 50 Hz | 60 Hz | |
| Bowl sizes | up to 914 mm | up to 36 in. |
| Capacities | up to 4’000 m³/h | up to 17’600 USgpm |
| Heads | up to 380 m | up to 1’250 ft. |
| Pressures | up to 100 bar | up to 1’450 psi |
| Temperatures | up to 600°C | up to 1’100°F |
| Materials： | ||
| Bowl & Impeller | HT carbon steel, chrome steel, HT stainless steel | |
| Shaft & Column and discharge head | HT chrome steel, HT stainless steel | |
