Main industries and applications：

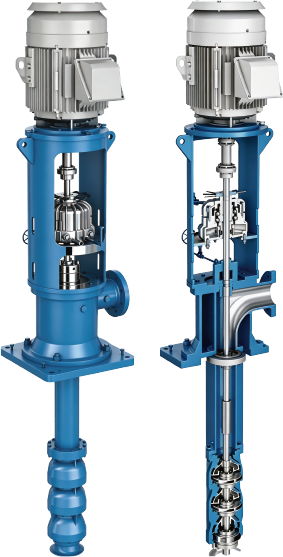

FV1A-A pumps are specified when lineshaft pumps are required for sump or tank installation；
FV1A-A pumps complies with the latest design of API610 .
Typical applications include:
• Water circulation pumps；
• Seawater lift pumps；
• Stormwater pumps .
Specifications：
Material options ISO 13709 (API 610) material codes: S-5, S-6, S-8, A-8, D-1, D-2
| Technical Data： | ||
| 50 Hz | 60 Hz | |
| Discharge size | up to 600 mm | up to 24 in. |
| Capacities | up to 5’000 m³/h | up to 22’000 USgpm |
| Heads | up to 900 m | up to 3’000 ft. |
| Pressures | up to 78 bar | up to 1’130 psi |
| Temperatures | up to +205°C | up to +400°F |
| Speeds | up to 3’600 rpm | up to 3’600 rpm |
